Digital Multimeter Smart Tweezers: One Touch LCR Meter

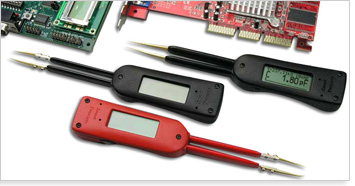

Smart Tweezers are a high-precision digital LCR and Voltage meter in a set of tweezers. They feature a highly accurate digital multimeter integrated with high precision SMD probes and a display. Easy one-hand operation makes it very convenient for component evaluation on a PCB or a production line, component impedance testing and sorting of SMD components. Smart Tweezers is an ultimate tool to troubleshoot or debug a complex PCB, significantly simplifying the process of locating a faulty component.

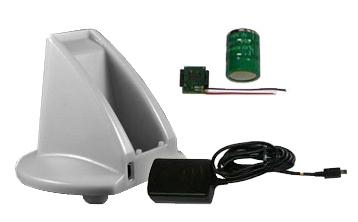

An alternative model of Digital Multimeter Smart Tweezers is powered by rechargeable batteries with an Inductive Charger that virtually eliminates necessity of battery replacement. This model is highly advisable if you use Smarrt Tweezers on a regular basis for more than 2 hours a day. If you already own Digital Multimeter Smart Tweezers, you may upgrade your Smart Tweezers for the use of Inductive Charger if you order the Charger Assembly Kit.
Integration of high-precision SMD probes and the display, combined with an automatic recognition of the type of component being measured (L, C, or R) and the best measurement range allow the user to concentrate on the tested component. As a result, testing, sorting and evaluation of components is done much quicker, Smart Tweezers does this job just in one touch.
 |
 |
| The new Smart Tweezers model has replaceable gold-plated probes. | Three types of Smart Tweezers probes are available, regular, straight and bent. |
Smart Tweezers Measurement of Inductance, Capacitance, Resistance
Once Smart Tweezers probes make a contact with a component, you see the reading of the main impedance component (L,C, or R) on the Primary display. The secondary display (at the top of the LCD screen) shows value of the secondary impedance component, such as a parasitic resistance of the capacitor (effective series resistor ESR). The Bar Graph provides an analog indication of the measured main impedance value.
Smart Tweezers Measurement of Voltage
The Smart Tweezers is capable of measuring voltage activated by the slide-switch located at the left-low corner of the Smart Tweezers unit. In the Auto mode, Smart Tweezers measure DC voltage up to 8 Volts. In the Trace mode, it shows an oscilloscope-like picture of an AC voltage.
  |
 |

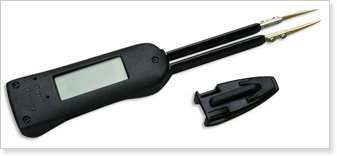

| Pocket Clip protects the tweezers tips and allows to wear Smart Tweezers on a pocket. |

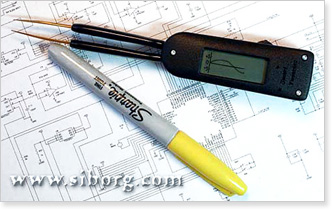

Trace mode allows to measure time varying voltages. |
Smart Tweezers Continuity/Open Test
The Smart Tweezers is designed for a continuity test. The beeper sounds when a resistance reading is below a threshold, or to indicate an open circuit.
Smart Tweezers Durable Probes

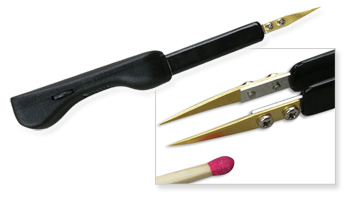

Tweezers tips are made of gold-plated non-magnetic stainless steel.
Smart Tweezers Ergonomic Design and Convenient Controls
Smart Tweezers features a Jog Dial button to select a menu item from the list to selected a function or to change settings. Rotate the Jog Dial button to select an item and push it down to activate the selection.
 |
 |
 |

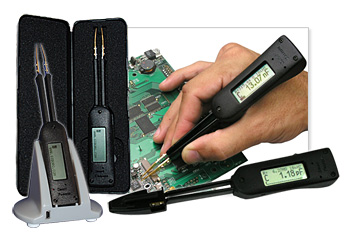

| One hand held Smart Tweezers is ten times lighter than conventional tools yet providing same high accuracy and fully automatic measurements. | Smart Tweezers features flexible user interface allowing to configure default settings, for example to adjust the screen for a left-hand use. |
Smart Tweezers Specifications
| Physical Specifications | |
| Operating Temperature: | 0 °C to +55 °C |
| Storage Temperature: | 40 °C to +60 °C |
| Relative Humidity: | 0 % to 90 % (0 °C to 35 °C) 0 % to 70 % (35 °C to 55 °C) |
| Altitude Operating: | 0-2000 meters |
| Storage: | 10000 meters |
| Battery Type: | 1.5V LR44 Alkaline or Air zinc |
| Battery Life: | 80 Hours typical with alkaline, 240 hours with air zinc battery |
| Electromagnetic Compatibility (EMC): | Susceptibility and Emission: FCC 15 part B |
| Size: | 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in) |
| Weight: | 53 grams (0.11lb) |
| Warranty: | 1 year |
| Basic Specifications | |
| Measured Parameters: | C, L, R, ESR, Rs, Rp |
| Measuring Frequencies: | 100Hz, 1 kHz, 10kHz |
| Measurement rate: | 1 time per second, default |
| DC Voltage: | 0 to 800 mV (Up to 8V with optional slide switch manual setting) |
| Resistance: | 0 to 9M |
| Capacitance: | 10 pF to 900 µF |
| Inductance: | 1µH to 999mH |
| Detailed Accuracy Specifications Accuracy is specified at 18°C to 28°C (64°F to 82°F), with relative humidity to 90%. | |
| Resistance: | |
| Range: | 0.1Ohm - 5MOhm |
| Accuracy: | 1% in range 0.1R - 5M |
| Test Frequency: | 1 kHz |
| Capacitance: | |
| Range: | 10pF - 499µF |
| Accuracy: | 3% in range 10pF - 499 µF |
| Resolution: | 0.5pF in range 1pF- 100pF |
| Test Frequency: | 1 kHz C > 1000pF; 10 kHz C < 1000pF; 100Hz C > 1µF |
| Inductance: | |
| Range: | 1µH-1H |
| Accuracy: | 3% in range 1µH - 1H |
| Resolution: | 0.5µH in range 1µH - 100µH |
| Test Frequency: | 10 kHz L < 1µH; 1 kHz L > 1µH; 100Hz L > 1mH |
| Feature Summary | |
| Fully automatic measurement of Inductance, Capacitance and Resistance | |
| Automatic selection of the best range | |
| Voltage measurements for up to 8 Volts | |
| Trace Graph: Oscilloscope-like display for AC voltage measurements | |
| Continuity/Open Test: Beeper sounds for resistance readings below a threshold, or to indicate a an open circuit | |
| Analog Bar Graph, Dual Graphics Displays | |
Smart Tweezers Purchasing Information
| Sale Price US $314.99 (CA$314.99) | |
    |
|
| Order by Phone/Fax: 301-762-1021 | |
| E-mail your Purchase Order to smarttweezers@sibbis.com | |
  |
|
Designed and Manufactured In Canada. Patented in Canada, USA, Europe, Japan, China, Taiwan, Hong Kong, and India.
